Vacuum preloading with PVD: consolidating soft ground without a tall surcharge

What vacuum preloading does

Vacuum preloading consolidates soft ground by pulling pore water out under suction through prefabricated vertical drains (PVD), with an airtight membrane sealing the surface. It reproduces the effect of a tall surcharge embankment without anyone trucking in and later removing that fill — which matters when there is nowhere to borrow surcharge material, or when the schedule can't wait for a staged loading sequence.

How the sealed system is built

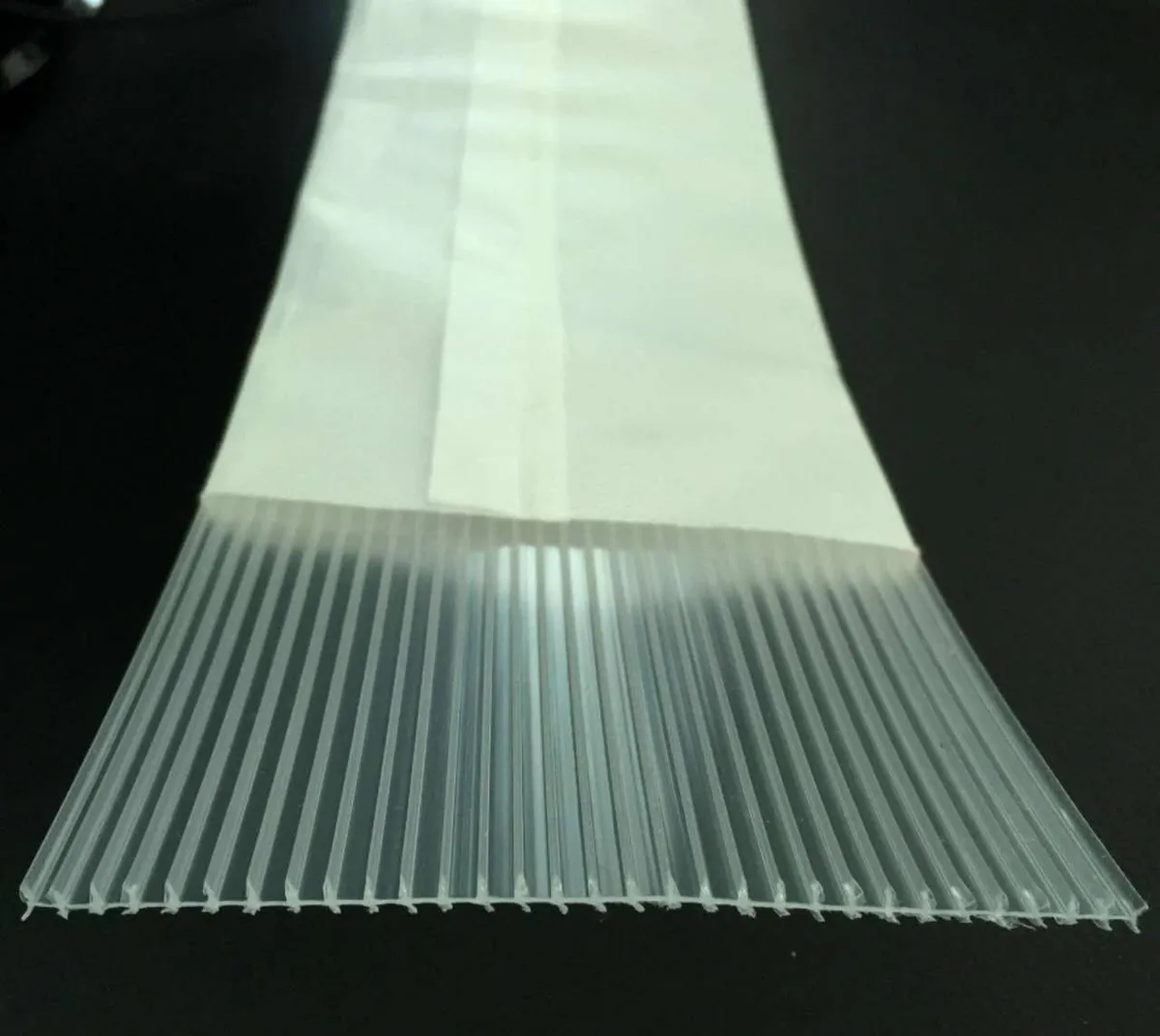

1) Install wick drains on a grid exactly as for surcharge preload. 2) Lay a sand drainage blanket and run a network of horizontal collector pipes tied into the drain tops. 3) Seal the whole area with an airtight HDPE membrane keyed into a peripheral cut-off trench, so the vacuum can't leak in from the sides. 4) Start the vacuum pumps; the suction draws water up through the drains and the clay consolidates.

Vacuum vs surcharge, honestly

A surcharge embankment loads from above and shoves soil sideways, so you need berms or staged lifts to keep it from sliding — and you pay to import the fill and again to remove it. Vacuum pulls the ground inward instead, which cuts lateral displacement and the slip-failure risk, and there is no fill to handle twice. The trade is that you live and die by the seal: one persistent leak in the membrane or the trench and you never hit target. On hard sites the two get combined — vacuum plus a partial surcharge — to reach the degree of consolidation faster.

When to choose it

Reclaimed and coastal sites with very deep soft clay, work hard against existing structures where outward movement is unacceptable, and programmes where importing surcharge fill is slow or expensive. We supply the PVD and the airtight HDPE membrane for the cap as one package — tell us the area and treatment depth.
