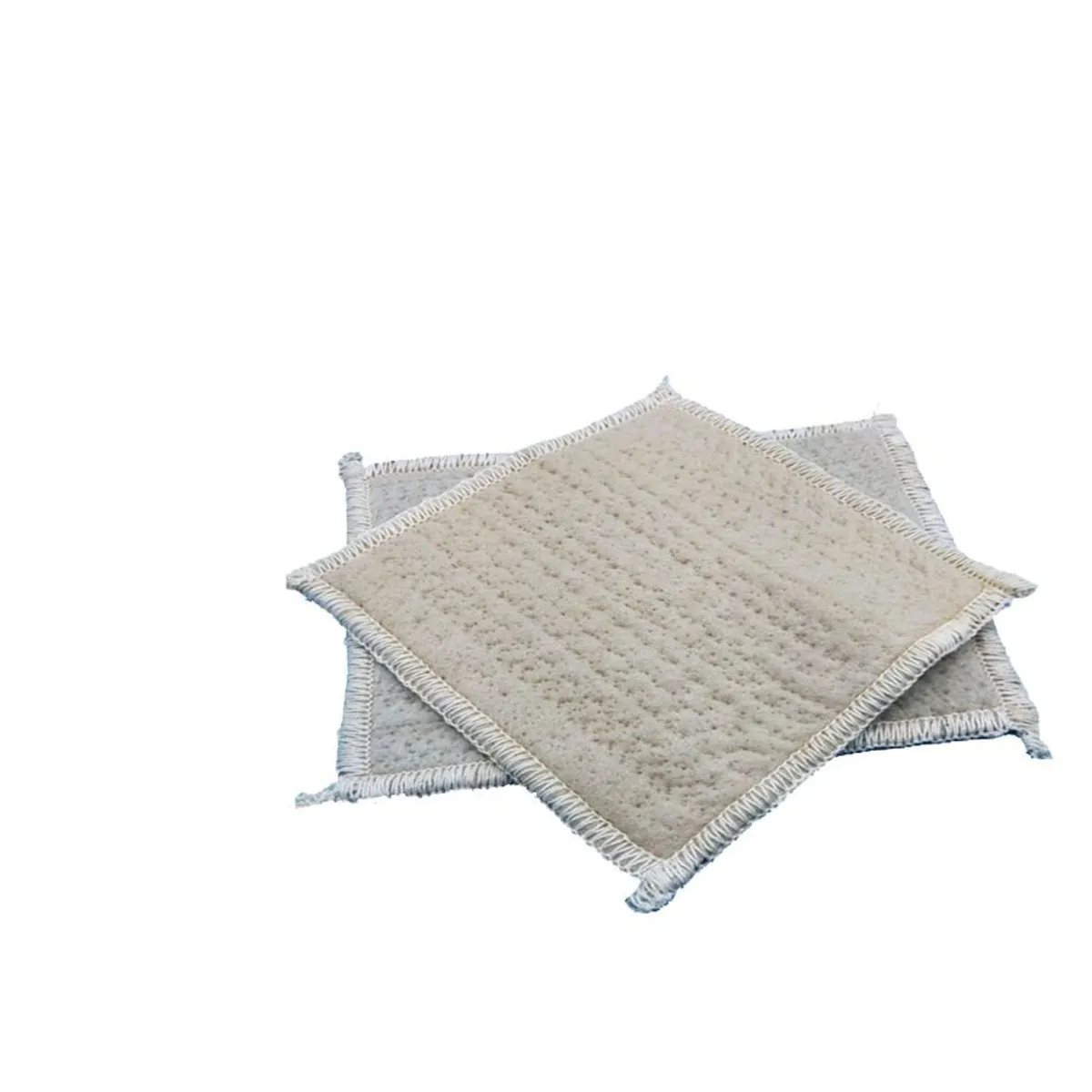

SIGMA geosynthetic clay liner (GCL) is a reinforced bentonite clay liner: a layer of granular sodium (natrium) bentonite encapsulated between a woven carrier geotextile and a nonwoven cap, bonded together by needle-punching to the GRI-GCL3 standard. When hydrated, the sodium bentonite swells into a low-permeability gel that self-seals minor punctures, giving a permeability as low as 5 × 10⁻¹¹ m/s. As a bentonite pond liner and landfill clay liner it provides green, durable seepage control for ponds, canals, reservoirs, landfills and underground works.
A geosynthetic clay liner (GCL) is a high-tech composite waterproofing material made of two layers of geotextile sandwiching a core of high-quality sodium (natrium) bentonite granules, bonded by a needle-punching method. The sodium bentonite is a natural clay mineral; when it absorbs water it swells into a dense, low-permeability gel that forms the seepage barrier. SIGMA manufactures this reinforced GCL liner to the GRI-GCL3 standard, so the clay liner delivers consistent, certified hydraulic performance.
The advantage of a geosynthetic clay liner over a compacted clay liner is the bentonite core: on contact with water the sodium bentonite swells many times its dry volume, sealing seams, overlaps and minor punctures automatically. This self-healing behaviour, combined with needle-punch reinforcement, lets the GCL conform to the subgrade and tolerate settlement without losing its barrier function. It is a green, non-toxic alternative for projects that would otherwise import and compact natural clay for pond lining.
SIGMA geosynthetic clay liner is used for municipal and underground works, subway and building waterproofing, and roof-reservoir seepage prevention; for environmental sanitation — household waste landfill, sewage treatment plants and industrial waste containment; and for water conservancy on rivers, lakes and reservoirs. As a bentonite pond liner it controls seepage at artificial lakes and golf-course ponds, and it provides anti-seepage and reinforcement for petrochemical, mining and agricultural projects. It is often paired with an HDPE geomembrane in composite lining systems.

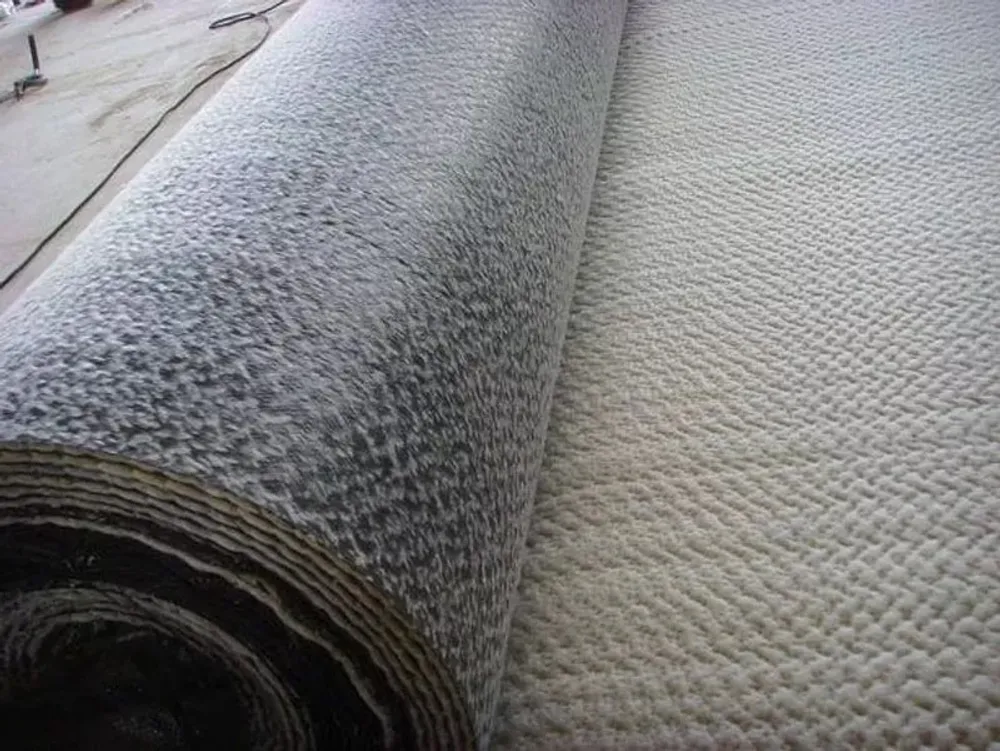

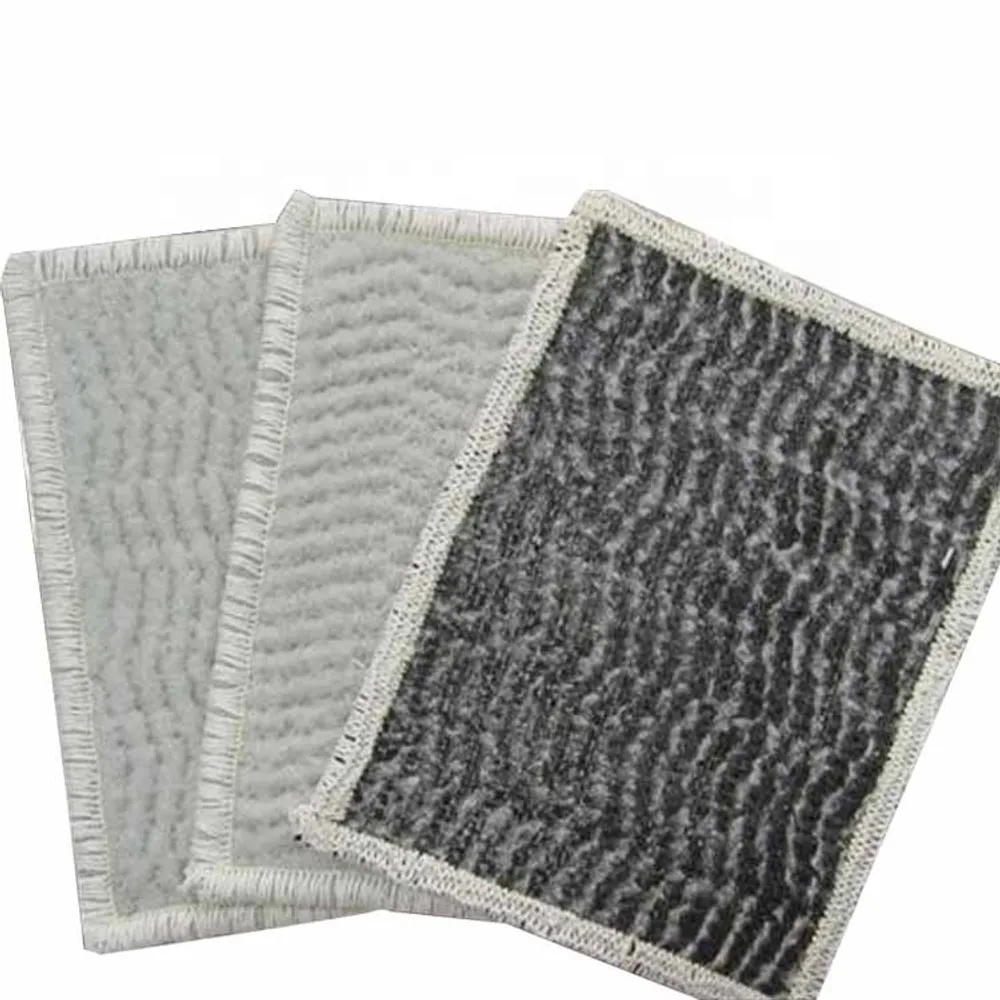

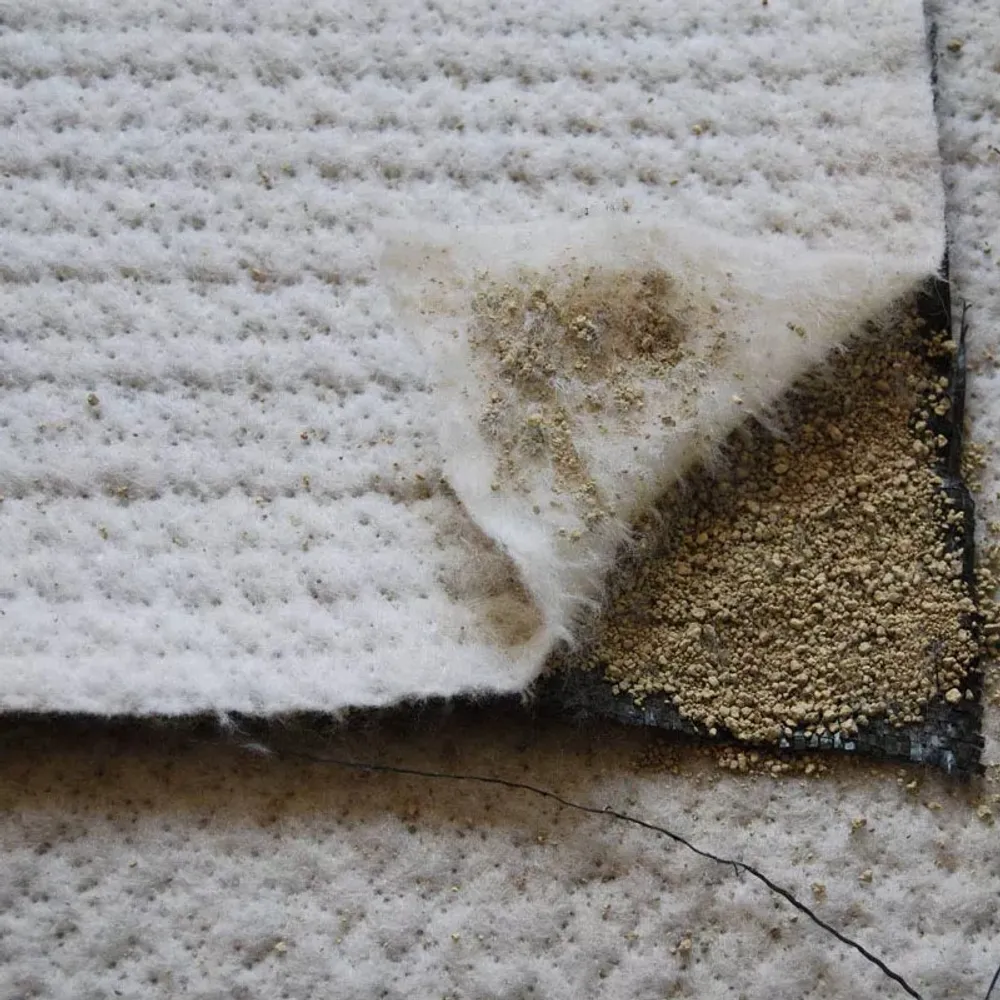

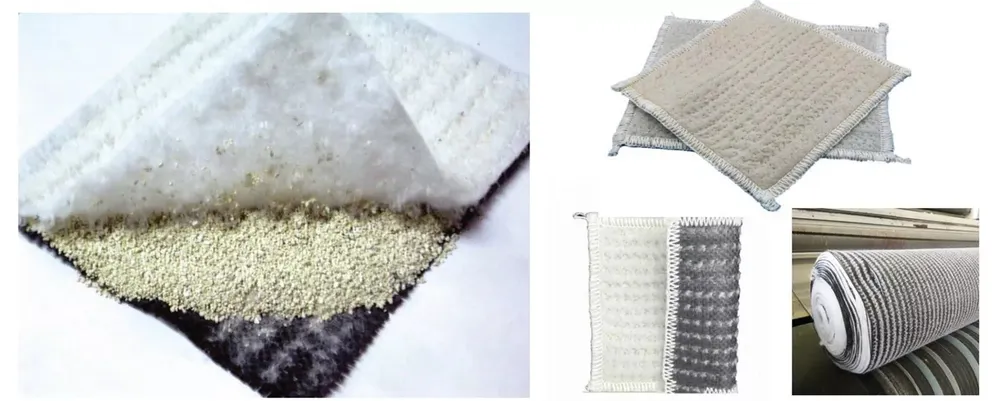

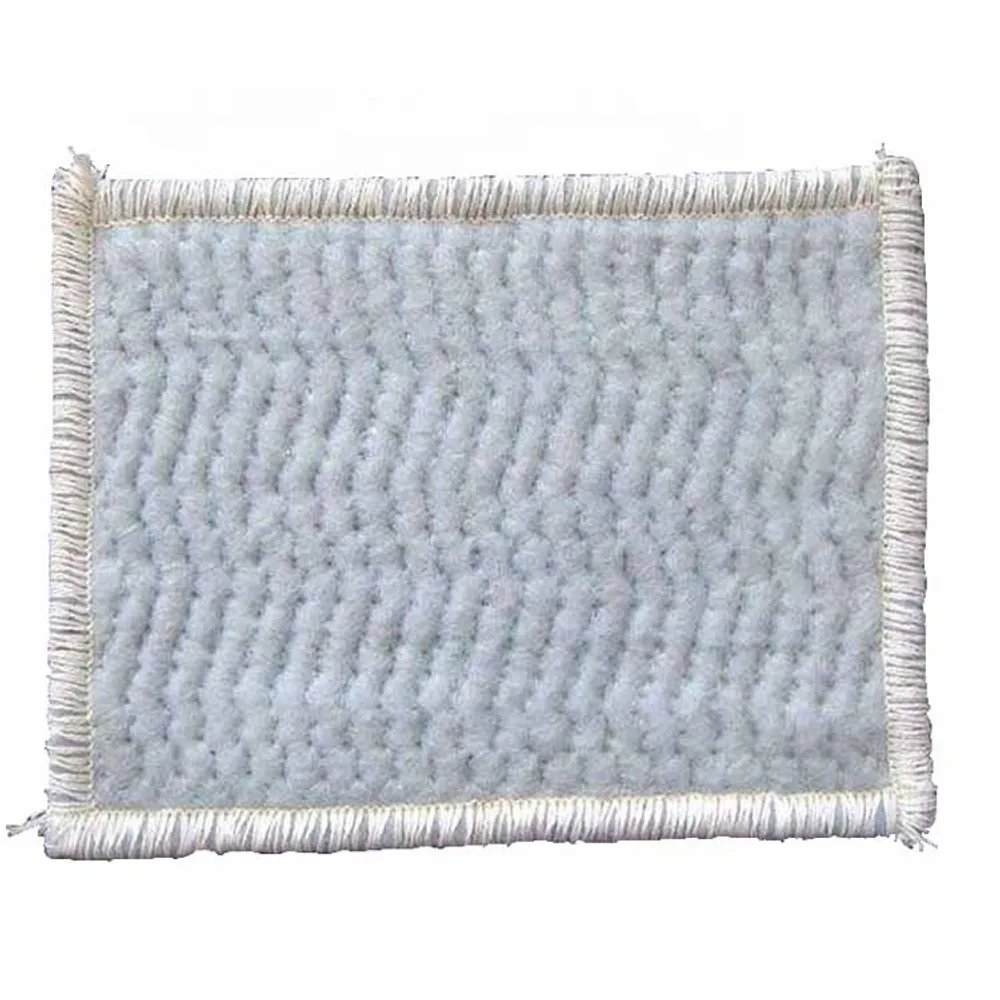

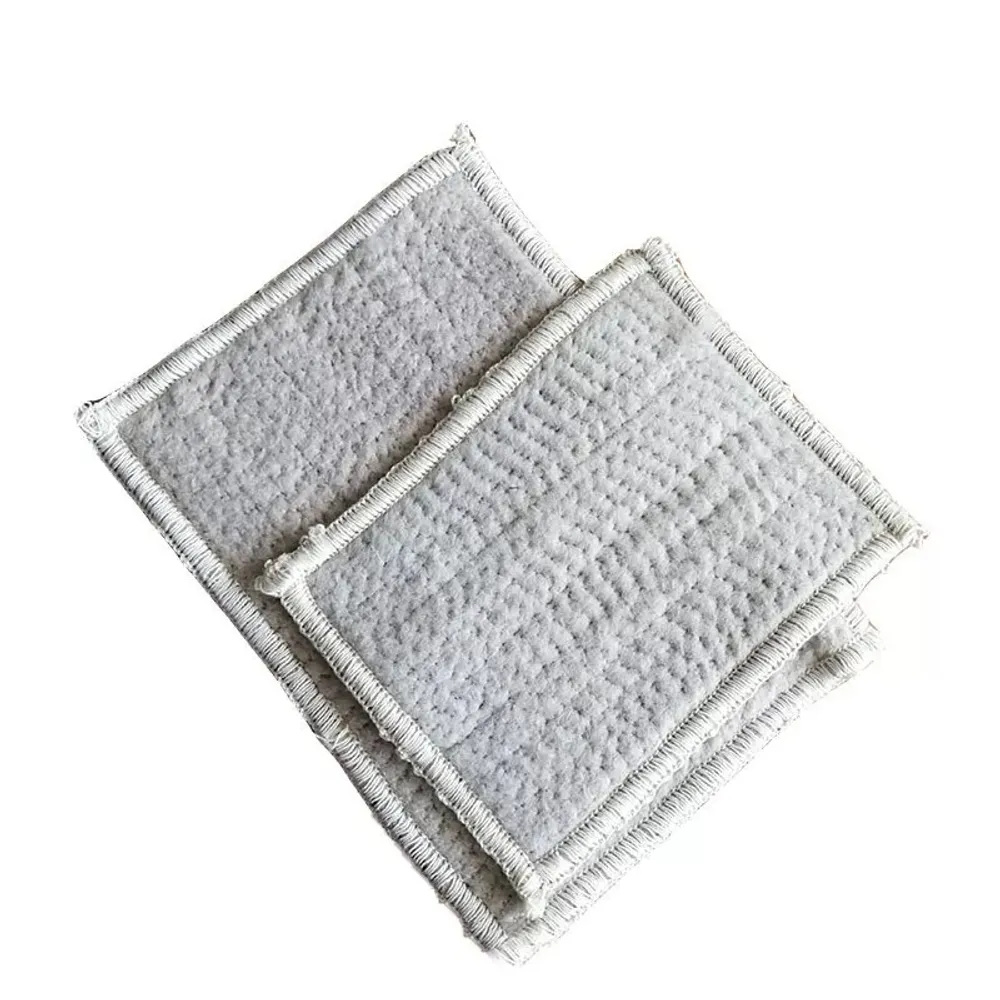

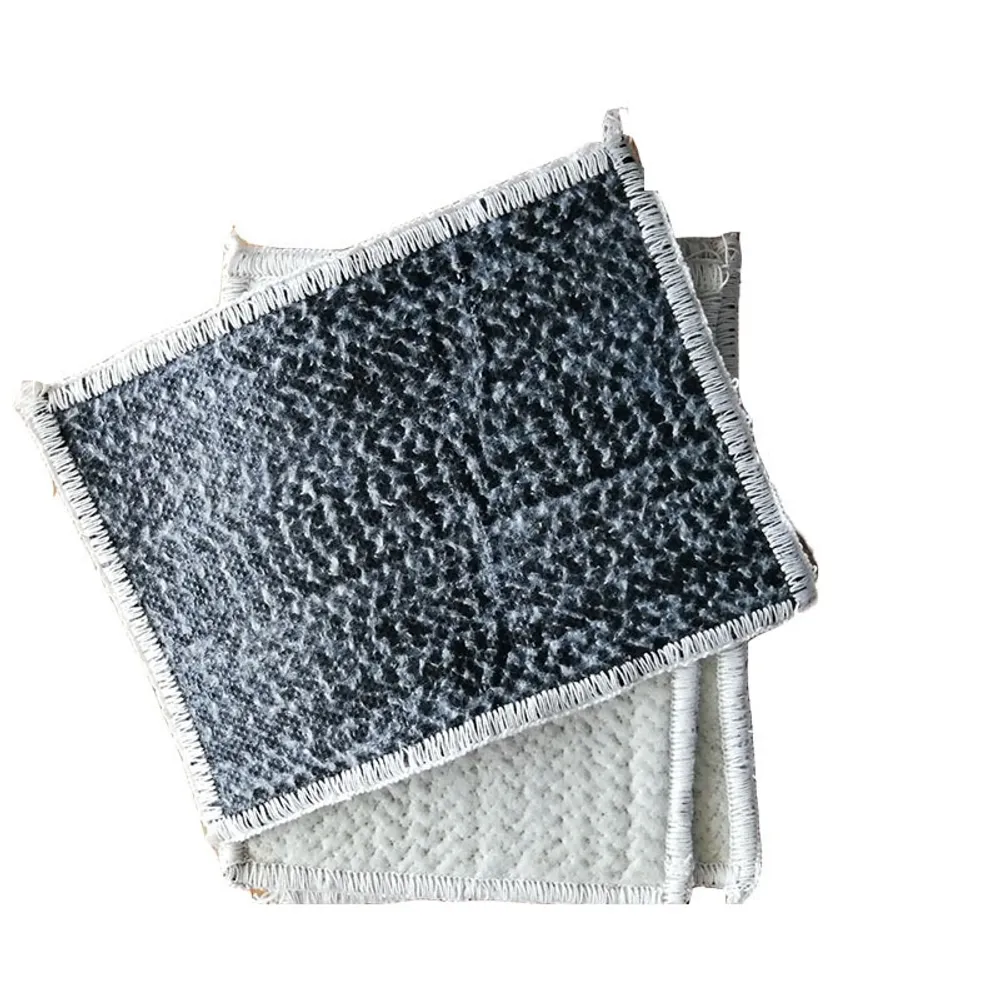

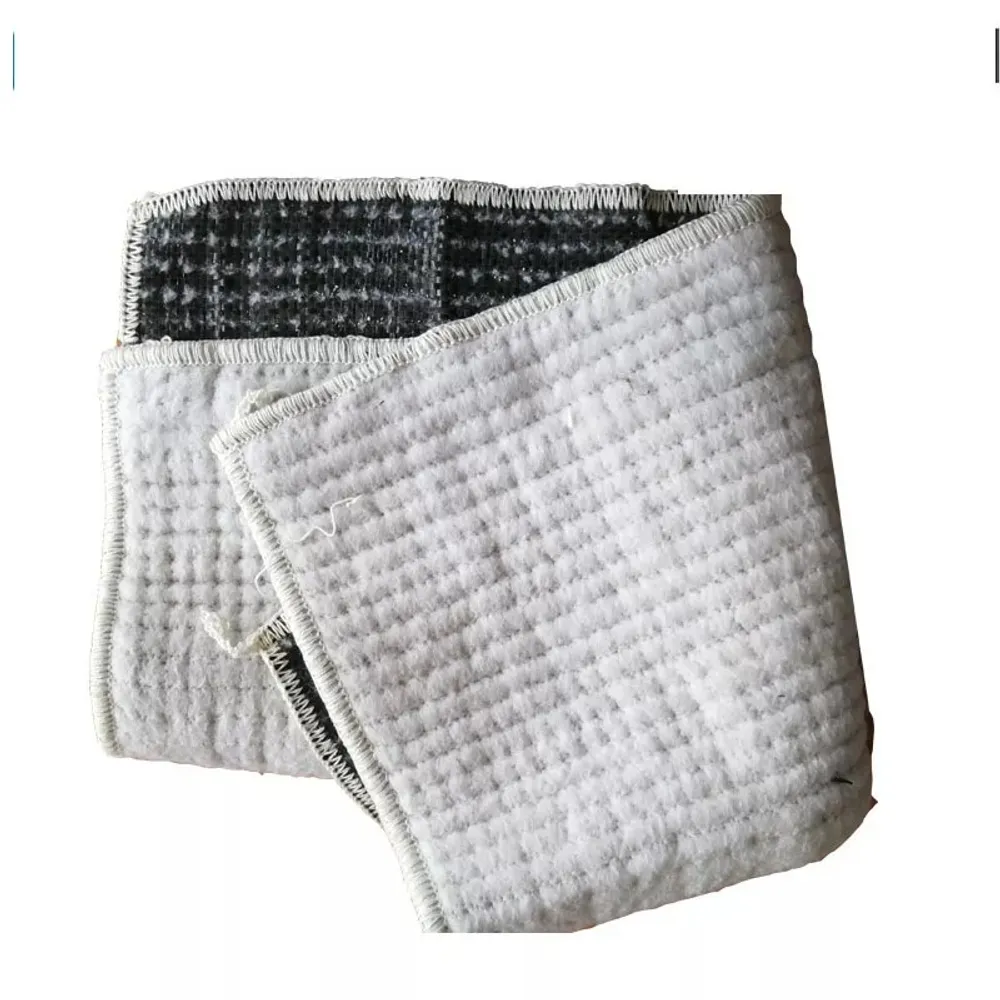

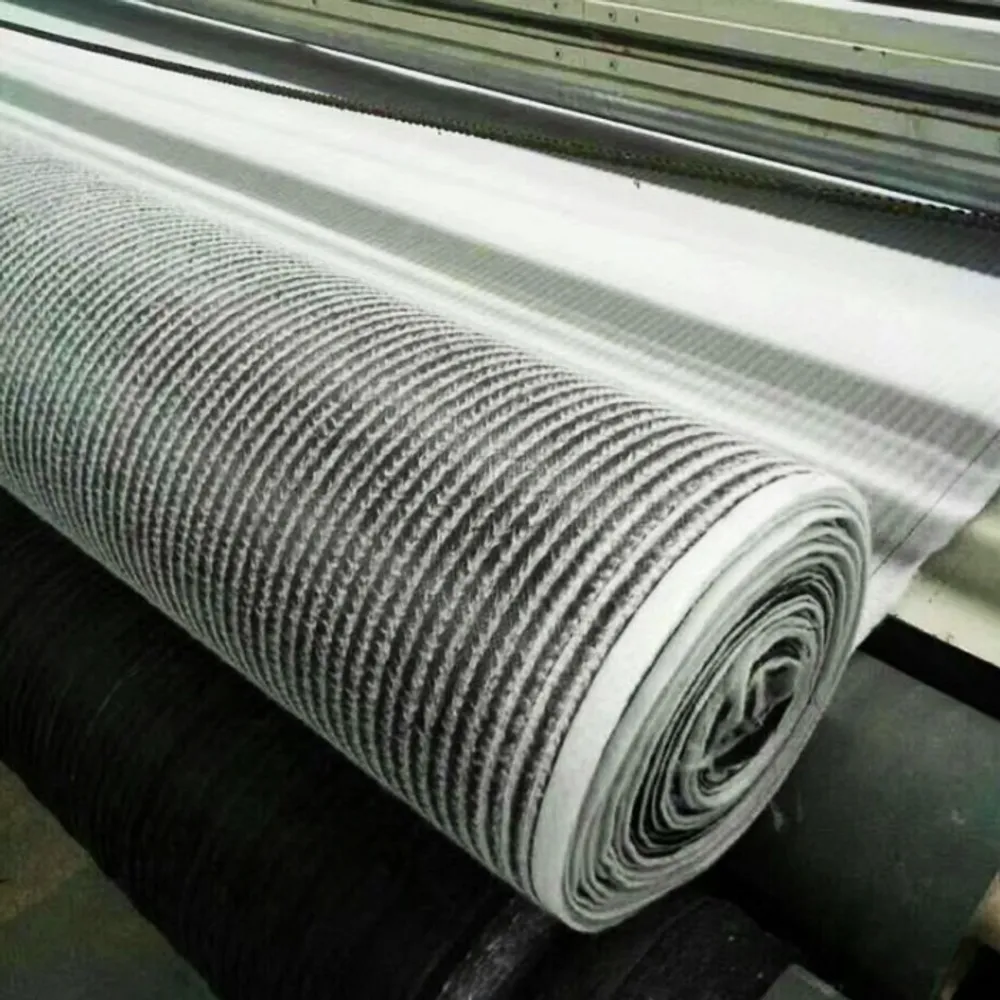

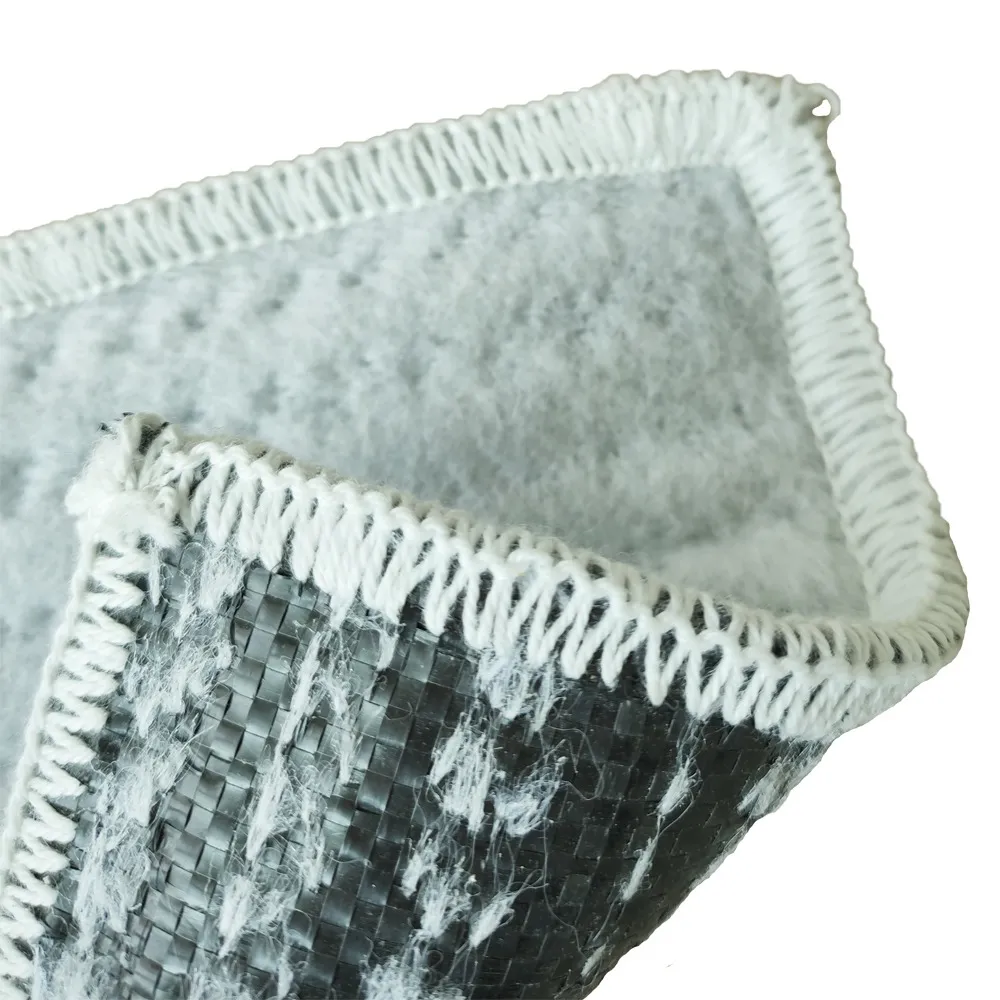

Each GCL liner is built by encapsulating a core of granular sodium (natrium) bentonite between two geotextiles — a woven carrier on one face and a nonwoven cap on the other — and locking the package together by needle-punching, which draws fibres through the bentonite and bonds the layers into a single reinforced sheet. The needle-punch reinforcement is what holds the clay in place on slopes and under load, and at least one fabric carries a scrim component for dimensional stability. Because the barrier comes from a natural clay mineral rather than a polymer film, the bentonite clay liner is a green, non-toxic core that performs as a self-contained seepage barrier or as the clay element of a composite lining system.
Traditional compacted clay liners require importing, placing and moisture-conditioning a thick layer of natural clay, and their performance depends entirely on field workmanship. A geosynthetic clay liner delivers the same low permeability in a few factory-controlled millimetres, so it installs far faster, weighs less, conforms to the subgrade and tolerates settlement and deformation that would crack compacted clay. For pond lining this means the GCL replaces large volumes of imported clay for pond lining while giving a certified, repeatable barrier — a practical reason buyers choose a gcl pond liner over bulk bentonite clay pond liner placement.
GCL panels are unrolled over a prepared, smooth subgrade and joined by simple overlap — typically with supplemental granular bentonite spread along the seam — so no welding equipment or skilled welding crew is needed and installation is fast. On hydration the bentonite swells across the overlap and seals it into a continuous barrier. Perimeter and penetration details are secured in anchor trenches, and where the surface is exposed or trafficked a cover soil layer or an HDPE geomembrane protects the liner.
As a geosynthetic clay liner manufacturer SIGMA produces every roll to the GRI-GCL3 (Rev. 5) standard, with swell index, bentonite mass, permeability, tensile and peel values verified by the designated ASTM methods, so the clay liner gives consistent, certified hydraulic performance project after project. We sell direct, quoting a geosynthetic clay liner price ex-works by the square metre or per roll, and roll width and length are set per order. Send us the project area, the required bentonite mass per square metre and your destination port and we will return a quotation.
Needle-Punched Reinforced Sodium-Bentonite GCL (GT-GT) — properties per GRI-GCL3 (Rev. 5, Nov. 21, 2019).
| Property | Test Method | Unit | Requirement |
|---|---|---|---|
| Clay (bentonite) — swell index (min.) | ASTM D5890 | mL/2 g | 24 |
| Clay (bentonite) — fluid loss (max.) | ASTM D5891 | mL | 18 |
| Cap fabric (nonwoven) — mass/unit area (min.) | ASTM D5261 | g/m² (oz/yd²) | 200 (5.9) |
| Cap fabric (woven) — mass/unit area (min.) | ASTM D5261 | g/m² (oz/yd²) | 100 (3.0) |
| Carrier fabric (nonwoven composite) — mass/unit area (min.) | ASTM D5261 | g/m² (oz/yd²) | 200 (5.9) |
| Carrier fabric (woven) — mass/unit area (min.) | ASTM D5261 | g/m² (oz/yd²) | 100 (3.0) |
| Mass of GCL (min.) | ASTM D5993 | g/m² (lb/ft²) | 4000 (0.81) |
| Mass of bentonite (min.) | ASTM D5993 | g/m² (lb/ft²) | 3700 (0.75) |
| Moisture content (max.) | ASTM D5993 | % | 35 |
| Tensile strength, MD (min.) | ASTM D6768 | kN/m (lb/in) | 4.0 (23) |
| Peel strength (min.) | ASTM D6496 | N/m (lb/in) | 360 (2.1) |
| Permeability (max.) | ASTM D5887 | m/s (cm/s) | 5 × 10⁻¹¹ (5 × 10⁻⁹) |
| — or — Flux (max.) | ASTM D5887 | m³/m²/s | 1 × 10⁻⁸ |
| GCL flux at 35 kPa (max.) | ASTM D6766 | m³/m²/s | 1 × 10⁻⁷ |
| Geotextile & reinforcing yarns — strength retained (min.) | per GRI-GCL3 §5.6.2 (ASTM D5035, 60 °C / 50 days) | % | 65 |
Yes. Our reinforced GCL is needle-punched and manufactured to the GRI-GCL3 (Rev. 5) standard for the geotextile-related (GT-GT) product class, with swell index, bentonite mass, permeability, tensile and peel values that meet or exceed the table above when tested by the designated ASTM methods.
A geosynthetic clay liner delivers the low permeability of a thick compacted clay layer in a few millimetres of factory-controlled product, so it installs far faster and conforms to the subgrade better. Its sodium bentonite core swells and self-seals on hydration, whereas a compacted clay liner relies entirely on field placement and moisture control.
The GCL achieves a maximum permeability of 5 × 10⁻¹¹ m/s (5 × 10⁻⁹ cm/s) per ASTM D5887, with a corresponding flux limit, making it suitable as a primary barrier for ponds, canals and reservoirs and as a base or capping liner for landfills.
GCL panels are unrolled over a prepared, smooth subgrade and joined by simple overlap — typically with supplemental granular bentonite along the seam — so no welding equipment is needed. On hydration the bentonite swells to seal the overlaps. Anchor trenches secure the perimeter, and a cover layer or geomembrane protects exposed areas.
GCL price depends mainly on bentonite mass per square metre, geotextile components and order volume. As a geosynthetic clay liner manufacturer we quote ex-works per square metre or per roll; send us the project area and destination port and we will return a price the same business day.
A geosynthetic clay liner is used for landfill base liners and capping, pond and reservoir seepage prevention, canal and river anti-seepage, and municipal, subway and building waterproofing. As a bentonite pond liner it controls seepage at artificial lakes and golf-course ponds, and it serves petrochemical, mining and agricultural containment — often as the clay element of a composite system with an HDPE geomembrane.
Roll width and length are set per order rather than fixed sizes, and at least one fabric carries a scrim component for dimensional stability. We keep minimums sensible for export — tell us the project area and the required bentonite mass per square metre and we will confirm roll dimensions and the minimum order quantity.

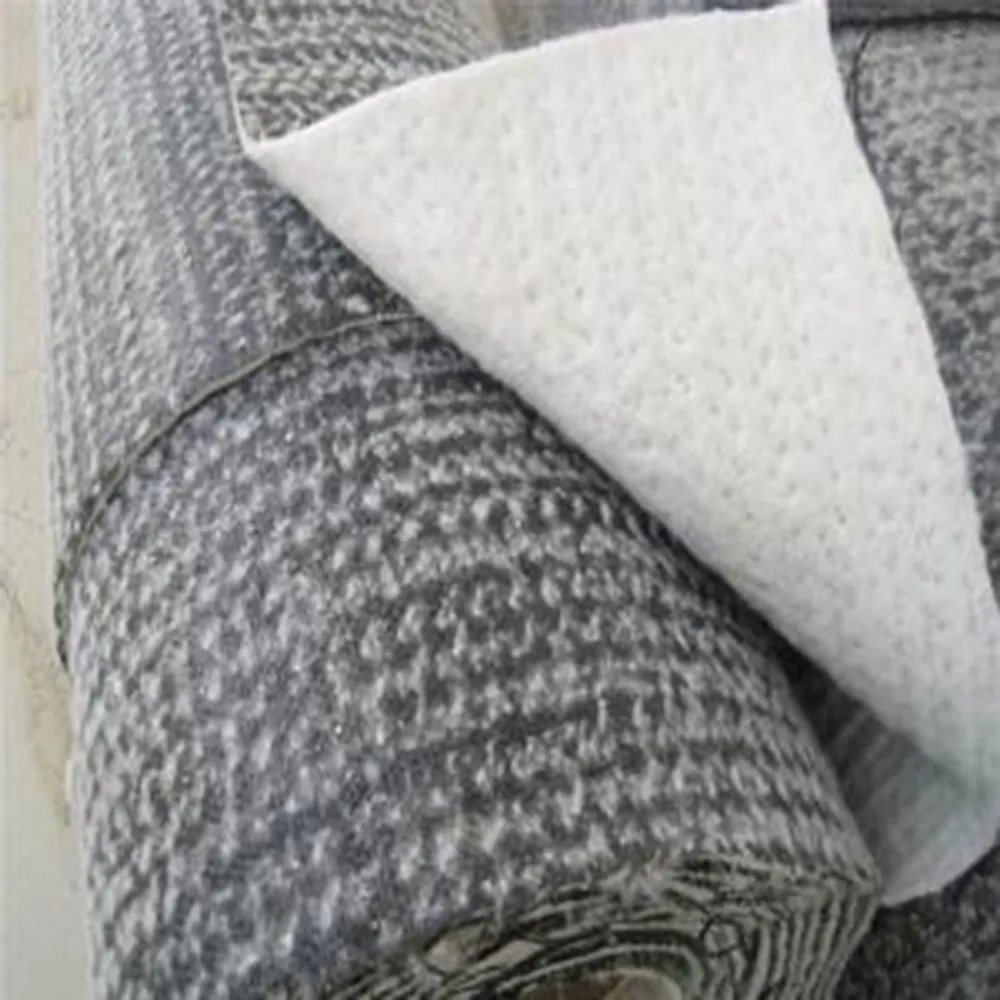

Lead time depends on bentonite mass, total area and current production load; we confirm a date when we quote. The GCL ships rolled and palletised for sea freight, and we arrange ex-works, FOB or CIF to your destination port. Share the area and port and we will include packing and shipping in the quotation.
